FastSinCos.jl

Fast SIMD sincos approximations for Float32, using SIMD.jl.

Ported from SLEEF polynomial approximations, with no deprecated dependencies (no LoopVectorization, VectorizationBase, or SLEEFPirates).

Functions

Three accuracy variants are provided:

Both operate on SIMD.Vec{N,Float32} and return (sin, cos) as a tuple of vectors.

Usage guide

What is SIMD?

SIMD (Single Instruction, Multiple Data) allows a CPU to perform the same operation on multiple values simultaneously. Instead of computing sin one float at a time, SIMD processes 4, 8, or 16 floats in a single instruction.

SIMD.jl provides Vec{N,T} types that represent N values of type T packed into a SIMD register. For example, Vec{8,Float32} holds 8 Float32 values that are processed in parallel.

Basic usage

using FastSinCos
using SIMD

# Create a SIMD vector of 8 Float32 phases
phases = SIMD.Vec{8,Float32}((0.1f0, 0.5f0, 1.0f0, 1.5f0, 2.0f0, 2.5f0, 3.0f0, 3.5f0))

# Compute sin and cos of all 8 values at once
s, c = fast_sincos_u35(phases)
# s and c are each SIMD.Vec{8,Float32}

Processing arrays in a loop

To process a Float32 array, load chunks into SIMD vectors using vload, process them, and write results back with vstore:

using FastSinCos
using SIMD

const W = 8  # SIMD width (8 for AVX2 Float32)

function compute_sincos!(sin_out, cos_out, input, n)
    i = 1
    @inbounds while i + W - 1 <= n
        # Load W floats from the array into a SIMD vector
        v = vload(SIMD.Vec{W,Float32}, pointer(input, i))

        # Compute sin and cos of all W values simultaneously
        s, c = fast_sincos_u35(v)

        # Store results back to arrays
        vstore(s, pointer(sin_out, i))
        vstore(c, pointer(cos_out, i))

        i += W
    end
    # Handle remaining elements with scalar fallback
    @inbounds for i in i:n
        sin_out[i], cos_out[i] = sincos(input[i])
    end
end

Choosing a variant

• Use fast_sincos_u100k for maximum throughput when ~3e-4 error is acceptable.
• Use fast_sincos_u3500 when ~3.6e-6 max error is acceptable and you want ~15% more throughput. Typical use case: GNSS carrier generation.
• Use fast_sincos_u35 when accuracy matters (~6e-8 max error).

All variants use Cody-Waite range reduction, so error is flat across all input ranges.

Performance tips

• 4x loop unrolling can give an additional ~25% speedup by reducing loop overhead and improving instruction-level parallelism. Compute 4 SIMD chunks of phases before doing the loads/stores.
• Phase accumulation (phase += delta instead of recomputing from index) avoids an int→float conversion per iteration. This is faster but accumulates floating-point drift over many iterations — only use for short blocks.

Accuracy vs input range

All variants use Cody-Waite range reduction, so error stays flat across all input ranges. The difference is in the polynomial order: u100k uses 2+2 coefficients (~3e-4 max error), u3500 uses 3+3 coefficients (~3.6e-6 max error), and u35 uses 3+5 coefficients (~6e-8 max error):

using FastSinCos, SIMD, CairoMakie

using Statistics

function error_stats(sincos_fn, range_max; n=10000)
    errs = Float64[]
    for _ in 1:n÷8
        vals = ntuple(_ -> Float32(rand() * 2 * range_max - range_max), 8)
        v = SIMD.Vec{8,Float32}(vals)
        s, c = sincos_fn(v)
        s_tup = NTuple{8,Float32}(s)
        c_tup = NTuple{8,Float32}(c)
        for i in 1:8
            ref_s = sin(Float64(vals[i]))
            ref_c = cos(Float64(vals[i]))
            push!(errs, max(abs(Float64(s_tup[i]) - ref_s), abs(Float64(c_tup[i]) - ref_c)))
        end
    end
    p25 = quantile(errs, 0.25)
    p50 = quantile(errs, 0.50)
    p75 = quantile(errs, 0.75)
    return p25, p50, p75, maximum(errs)
end

ranges = [10, 30, 100, 300, 1_000, 3_000, 10_000, 30_000, 100_000, 1_000_000]
stats_u100k = [error_stats(fast_sincos_u100k, r) for r in ranges]
stats_u3500 = [error_stats(fast_sincos_u3500, r) for r in ranges]
stats_u35 = [error_stats(fast_sincos_u35, r) for r in ranges]
p25_u100k = [s[1] for s in stats_u100k]
p50_u100k = [s[2] for s in stats_u100k]
p75_u100k = [s[3] for s in stats_u100k]
p25_u3500 = [s[1] for s in stats_u3500]
p50_u3500 = [s[2] for s in stats_u3500]
p75_u3500 = [s[3] for s in stats_u3500]
p25_u35 = [s[1] for s in stats_u35]
p50_u35 = [s[2] for s in stats_u35]
p75_u35 = [s[3] for s in stats_u35]

fig = Figure(size=(700, 400))
ax = Axis(fig[1, 1];
    xlabel="|d| max input range",
    ylabel="Absolute error",
    xscale=log10, yscale=log10,
    title="Accuracy vs input range (median with 25th–75th percentile)")
rx = Float64.(ranges)
rangebars!(ax, rx, p25_u100k, p75_u100k; color=(:red, 0.3), whiskerwidth=8)
scatterlines!(ax, rx, p50_u100k; label="u100k", marker=:utriangle, color=:red)
rangebars!(ax, rx, p25_u3500, p75_u3500; color=(:dodgerblue, 0.3), whiskerwidth=8)
scatterlines!(ax, rx, p50_u3500; label="u3500", marker=:circle, color=:dodgerblue)
rangebars!(ax, rx, p25_u35, p75_u35; color=(:orange, 0.3), whiskerwidth=8)
scatterlines!(ax, rx, p50_u35; label="u35", marker=:diamond, color=:orange)
axislegend(ax; position=:lt)
fig

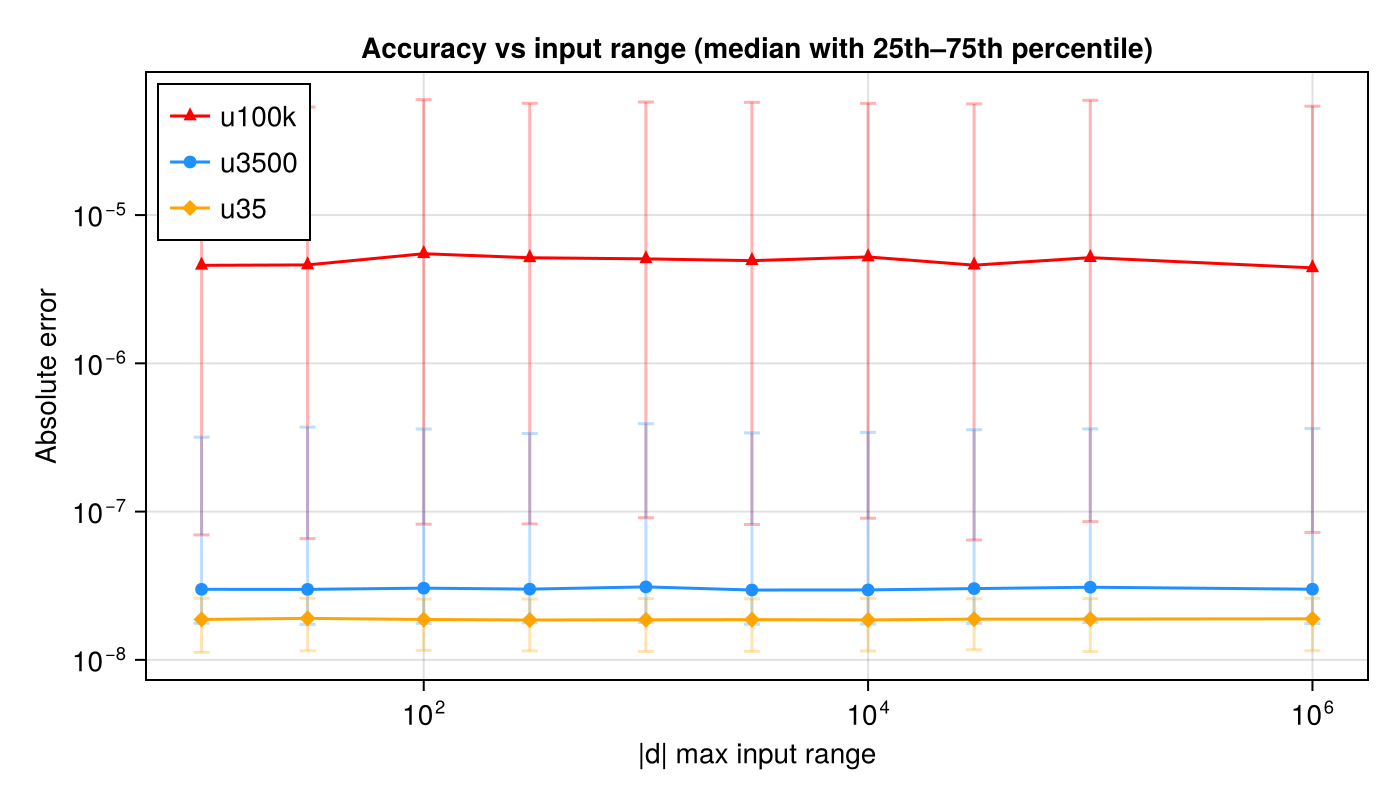

Lines show median absolute error over 10,000 random samples; bars indicate 25th–75th percentile (IQR). All variants maintain flat error across all input ranges thanks to Cody-Waite range reduction.

Performance

On a typical x86-64 CPU with AVX2 (Vec width 8), processing 25K Float32 samples in a downconvert workload:
